SynQor® Releases an Advanced AC-DC 6U VPX Power Supply (VPX-6U-ACUNV-1-C-001)

July 11, 2019

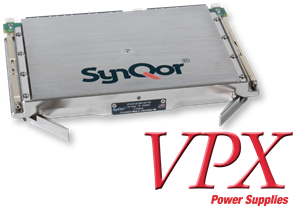

6U-VPX-power-supply-militaryBoxborough, MA – SynQor, Inc., announces its new universal 85 to 264 Vrms AC input VPX power supply for critical military, aerospace and shipboard applications.  This 6U VPX power supply, designed to meet VITA 46 standards, allows designers in the defense markets to power their VITA 62 chassis with the latest flexible, efficient and reliable VPX technology.

The VPX-6U-ACUNV universal AC input power supply delivers 630 W with an efficiency of 84% at 70 °C (at card wedge locks).  It is able to operate at wedge lock temperatures as high as 85 °C with de-rated output power. The VPX can be powered over a dual frequency range, 47 to 63 Hz and 360 to 800 Hz, with a power factor of 0.99 at 50/60 Hz and 0.97 at 400 Hz. The power module is equipped with several features: integrated EMI filter, conduction cooling, five output voltages, over voltage, under voltage, short circuit and over temperature protections.  It has an optional I2C communications (IPMI, PMBus, VITA 46.11) feature.  The VS1/VS2 (+12 V), VS3 (+5 V) and the +3.3 VAUX outputs can be load shared on a standard VITA 62 chassis.  It has been designed for the most demanding military applications.  The VPX power supply unit meets VITA 46, VITA 47, VITA 62, MIL-STD-461F, MIL-STD-704 (B-F), and MIL-STD-810G standards.

SynQor's products have a proven record of going above and beyond the standard military specifications to deliver the most efficient and dependable solutions on the market.


  • Universal AC Input 85 to 264 Vrms, 47 to 63 Hz and 360 to 800 Hz, PF ≥ 0.99
  • ​Five Outputs (VS1/VS2: +12V; VS3: +5V; Aux: +3.3V, +12V and -12V)
  • 630 W Output Power
  • Temperature Operating Range: -40 to 70 °C (85 °C de-rated power)
  • Integrated EMI Filter
  • Over Voltage, Under Voltage, Short Circuit, Over Temperature Protections
  • Current Sharing on VS1/VS2, VS3 and +3.3VAUX outputs
  • Optional I2C communication function (Supports IPMI, PMBus, VITA 46.11)

Specification Compliance

  • VITA 46
  • VITA 47
  • VITA 62
  • MIL-STD-461F
  • MIL-STD-704 (B-F)
  • MIL-STD-810G

Please click here to download the VPX-6U-ACUNV datasheet and here to download the VPX-6U-ACUNV Operator's Guide.   For more information on this or for additional power application assistance please explore more at or contact your Local SynQor Representative.
