SynQor® Announces New Additions to its RailQor® Transportation Product Families

March 15, 2021

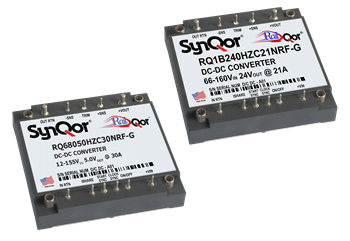

504 W RQ1BxxxHZ Half Brick 66-160 VDC Input Range
150 W RQ68xxxHZ Half Brick 12-155 VDC Input Range

SynQor, Inc., announces the RQ1BxxxHZ and RQ68xxxHZ, the new additions to its railway transportation product lines.
Boxborough, MA
– SynQor, Inc., announces the RQ1BxxxHZ and RQ68xxxHZ, the new additions to its railway transportation product lines.  These high power, high efficiency DC-DC converters for railway applications are based on SynQor’s next generation, isolated, fixed frequency synchronous rectifier technology.  The RailQor converters are designed to provide extremely high-power conversion efficiencies throughout the entire output power range.

The modules are encased to operate in the harshest transport and industrial environmental conditions. The ultra-wide input range of the RQ68 and RQ1B allows designers and integrators to power a large variety of products with a single part type. The outputs can be adjusted between -20% and +10% of the nominal output voltage of the converter. Multiple converters can be integrated for increased output power or to support redundancy. The impressive power density of the modules help optimize space in an industry where space is at a premium. SynQor’s field proven, highly reliable technology shortens design cycles and helps designers/integrators yield reliable, dependable solutions for the very competitive rail and transport markets.

Features

  • High power density:
    • Up to 504 W for RQ1BxxxHZ (half-brick)
    • Up to 150 W for RQ68xxxHZ (half-brick)
  • Wide input range:
    • 66 to 160 Vdc for RQ1BxxxHZ
    • 12 to 155 Vdc for RQ68xxxHZ
  • High efficiency:
    • 95% RQ1BxxxHZ
    • 90% RQ68xxxHZ
  • Available output voltages: 5, 12, 15, 24 and 48 Vdc
  • Reinforced isolation (2,000 Vrms) for the RQ1B and RQ68 modules
  • Maximum baseplate temperature 100 °C


Specification Compliance

  • EN 50155
  • UL 60950-1
  • EN 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • EN45545-2 R24/R25 Compliant
  • EN 61373:1999 Cat I, Cat B
  • EN 60068-2-1/2/30:2005

Please download the RQ1BxxxHZ and RQ68xxxHZ datasheets. For more information on this or your other power needs, visit us at www.synqor.com or contact us via your local SynQor representative.
