Military DC-DC Power Converters

High Power, High Efficiency Designs

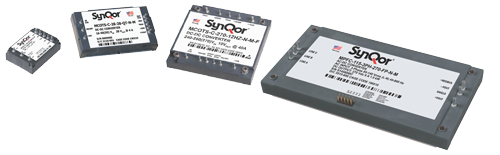

SynQor's Mil-COTS line of military DC-DC power converters features powerful, highly efficient, next generation designs. These cost sensitive, military-grade DC-DC converters comply with a wide range of military standards and are compatible with the industry standard format. Mil-COTS DC-DC converter modules are mil-spec compliant and fully ruggedized for use in extreme environmental and electrically demanding applications.

• High efficiency power supply, up to 95% at full rated load current
• Operating Input Voltage Range: 9-425V
• Output power up to 800W
• Rugged design for harsh environments
• Fixed frequency switching provides predictable EMI
• No minimum load requirement
• Full Feature option on some models
• Flanged baseplate available
• Industry standard pin-out configurations and standard footprints

• Ultra-high efficiency, up to 97%
• Wide input voltage ranges: 9-60V, 9-90V
• Buck/Boost Mode available
• Maximum input/output currents up to 40A
• Suitable for use in Intermediate Bus Architectures
• On-board input and output filtering
• No minimum load requirement
• Remote sense and wide output voltage trim (Half brick only)

• High efficiency, up to 95% at full rated load current
• Delivers 32A full power with minimal derating
• Operating input voltage range: 230-400V and 440-700V
• Fixed frequency switching provides predictable EMI
• No minimum load requirement
• Industry standard half-brick pin-out configuration
