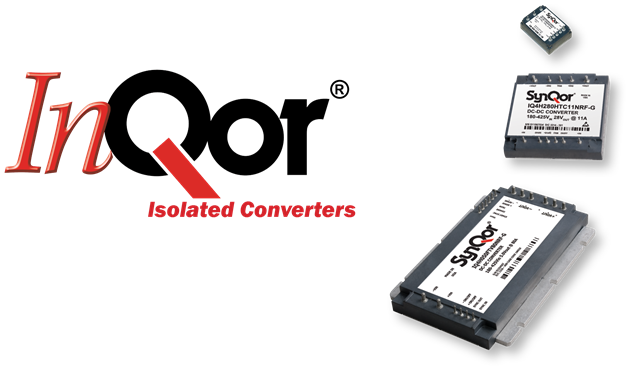

Next-Generation, Ruggedized Isolated DC-DC Converters for Industrial Applications

SynQor’s ruggedized isolated InQor® DC-DC converters and filters are designed for a wide range of industrial applications including those required to withstand harsh environments: railway and transportation systems, industrial motion control, information displays, factory automation and power generation systems. SynQor converters feature a two-stage power topology with synchronous-rectification that greatly improves efficiency and optimizes the power dissipated by the converter.

  • Operational Features
    • High efficiency up to 95%
    • Input voltage ranges from 9 V to 425 V
    • Output power up to 600 W
    • Fixed frequency switching, low output noise
    • No minimum load requirement
    • Full Feature option on some models
    • Industry standard pin-out configurations and standard footprints
    • Operating Temperature -40ºC to +100ºC
    • Output Voltage Set Point ±1.0%
    • Output Voltage Ripple <1% of Vout (typ.) pk-pk
    • Isolation Voltage Up to 4250 Vdc
  • Protection/Control Features
    • Input under-voltage lockout
    • Output current limit and short circuit protection
    • Active back bias limit prevents damage to converter from external load induced pre-bias
    • Digital output current sharing (Half Brick Zeta only)
    • Output over-voltage protection
    • Thermal shutdown
    • Trimmable output voltages
Industrial Non-Isolated DC-DC Converters - High Voltage

Industrial Non-Isolated DC-DC Converters - High Voltage

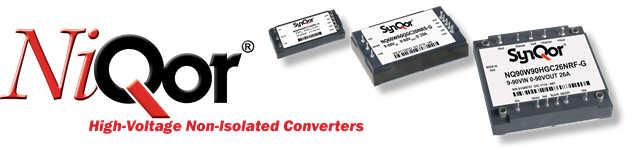

High Voltage, Non-Isolated DC-DC Converters for Industrial Applications

The high input voltage NiQor® family of DC-DC converters offers unique solutions for converting high‑powered, variable voltages to a wide range of output voltages. The converter is a non-isolated buck‑boost regulator, which employs synchronous rectification to achieve extremely high conversion efficiency. These products are suitable for use in Intermediate Bus Architecture, or to provide a regulated output voltage from a variable voltage source such as a battery. They can be configured to ‘buck’ the input voltage down or ‘boost’ the input voltage up using a single external resistor.

  • Operational Features
    • Ultra-high efficiency up to 96%
    • Wide input voltage ranges:
    • 9-20 V (NQ20); 9-40 V (NQ40); 9-60 V (NQ60); 9-90 V (NQ90)
    • Buck or Buck/Boost Mode available
    • Maximum input/output currents up to 55 A
    • Suitable for use in Intermediate Bus Architectures
    • On-board input and output filtering
    • No minimum load requirement
    • -40°C to +100°C Operating Temperature
    • Remote sense and wide output voltage trim
  • Protection/Control Features
    • Input under-voltage lockout (UVLO)
    • Output current limit (OCP) and short circuit protection
    • Output over-voltage protection (OVP)
    • Thermal shutdown (OTP)
    • Output voltage trim
  • Battery Charging
    • Provides the power conversion platform for battery charging
    • Output current limit is externally controlled for constant-current charging
    • Current can be set with an external resistor or an active circuit
    • Current analog signal provided for instrumentation and control functions
    • Ideal diode output stage with zero back-drive currents prevents discharge of battery when not charging
    • Output voltage set-point is independently controlled through trim pin
    • Unit will smoothly transition between current and voltage modes as charging cycle needs charge

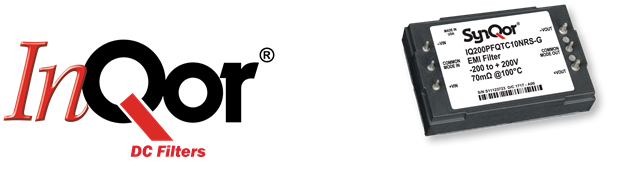

Industrial DC EMI Filters

Industrial DC EMI Filters

Industrial-grade DC Filter Modules for DC-DC Converters

SynQor provides EMI filters for InQor® DC-DC converters. All EMI filters provide high levels of differential-mode and common-mode attenuation and include stabilizing bulk capacitors and damping resistors.

To learn more visit our Product Guide or contact a SynQor representative.

  • Operational Features
    • Low DC resistance
    • Differential-mode attenuation
    • Common-mode attenuation
    • Bulk capacitance provides input system stabilization for downstream power converters
    • No electrolytic capacitors (all ceramic design)
    • High-voltage isolation between chassis and input / output
    • Wide temperature range operation
    • -40°C to +100°C Operating Temperature

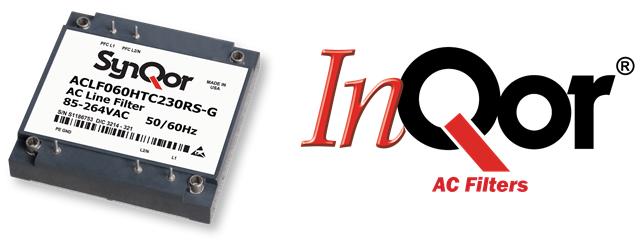

InQor - Industrial AC Line Filters

Industrial AC Line Filters

AC Line Filter Modules Designed to Comply with Industrial EMI Standards

SynQor provides AC Line filters for the Industrial PFC modules and DC-DC converters. SynQor’s high‑performance filters are designed to comply with industry EMI standards.

  • Operational Features
    • Universal Input voltage range
    • 1 kW @ 11 5V or 2 kW @ 230 V
    • All ceramic capacitor design
    • Internally damped
    • -40°C to +100°C Operating Temperature
    • Low power dissipation
    • Complies with industry EMI standards when used with SynQor PFC and DC-DC converter modules
    • High voltage isolation between baseplate and input/output

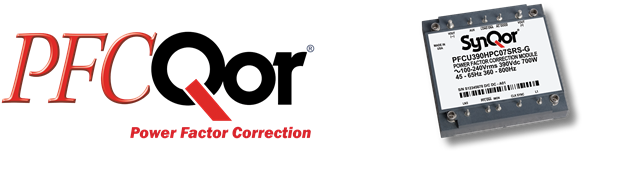

PFCQor - Non-Isolated Power Factor Correction Modules

Industrial Power Factor Correction Modules

Non-Isolated AC-DC Converters

The PFCQor® Power Factor Correction module is an essential building block of an AC-DC power supply. Used in conjunction with a hold-up capacitor, SynQor’s high efficiency DC-DC converters and SynQor’s AC line filter, the PFCQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. Up to three PFCQor modules can be paralleled to achieve higher power. The module is supplied completely encased to provide protection from the harsh conditions seen in many industrial and transportation environments.

  • Operational Features
    • Universal input voltage range: 85-264 Vrms
    • Universal input frequency range: 47 - 63 Hz / 360 - 800 Hz
    • Up to 700 W output power
    • ≥0.99 Power Factor
    • High efficiency: >96% (230 Vrms), >94% (115 Vrms)
    • Internal inrush current limit
    • Auxiliary 10 V bias supply
    • 100°C max baseplate temperature at full power
    • -40°C to +100°C Operating Temperature
    • Up to three modules can be paralleled with current sharing
    • Compatible with SynQor IQ4H Converters and AC line filters
  • Protection/Control Features
    • PFC Enable
    • Load Enable (also: Power Out Good signal)
    • AC Power Good Signal (HB only)
    • Clock synchronization (HB only)
    • Output current monitor / active current sharing (HB only)
    • Input current limit along with auto-recovery short circuit protection
    • Auto-recovery input under / over-voltage protection
    • Auto-recovery output over-voltage protection
    • Auto-recovery thermal shutdown

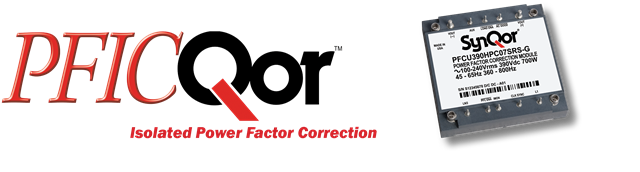

PFICQor - Isolated Power Factor Correction Module

Industrial Isolated Power Factor Correction Modules

Isolated AC-DC Converters

The PFICQor Isolated Power Factor Correction module is a high power, high efficiency AC-DC converter. It operates from a universal AC input and generates an isolated output. Both regulated and semi-regulated (droop version) modules are available. Used in conjunction with a hold-up capacitor, and SynQor’s AC line filter, the PFICQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. The module is supplied completely encased to provide protection from the harsh environments seen in many industrial and transportation environments.

  • Operational Features
    • Isolated output, 325 W output power
    • Universal input frequency range: 47 - 63 Hz / 360 - 800 Hz
    • Input voltage range: 85-264 Vrms
    • ≥0.99 Power Factor
    • High efficiency: >92% (230 Vrms),
    • Internal inrush current limit
    • Auxiliary 10 V bias supply, primary-side referenced
    • Can be paralleled (droop version only)
    • Up to three modules can be paralleled with current sharing
    • -40°C to +100°C Operating Temperature
    • Compatible with SynQor AC line filters
  • Protection/Control Features
    • PFC Enable
    • AC Power Good Signal
    • DC Power Good Signal
    • Input current limit and auto-recovery short circuit protection
    • Auto-recovery input under/over-voltage protection
    • Auto-recovery over-voltage protection
    • Auto-recovery thermal shutdown

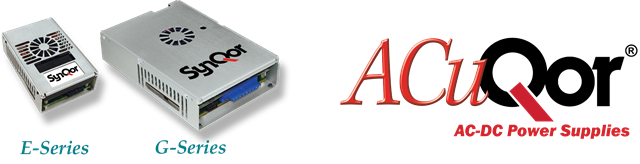

ACuQor - Industrial-Grade AC-DC Power Supplies with PFC

Industrial AC-DC Power Supplies

Industrial-Grade Highly Efficient AC-DC Power Supplies with PFC

The ACuQor® product line offers best-in-class solutions for AC-DC power supplies designed to meet an extensive range of applications. The E-Series packages 500 W of usable power into just 3.50" x 5.25" x 1.63" (Encased). The G-Series provides 1400 W of usable power in a 4.75" x 7.00" x 1.63" package.

  • Product Features
    • High efficiency up to 93% at full rated load current
    • Delivers up to 1400 W of output power (1800 W transient)
    • Semi-regulated output
    • Operating ambient temperature: -40°C to +70°C
  • Protection/Control Features
    • Over-current, over-voltage, and over-temp protection
    • DC Power Good and AC Power Good signals
    • Remote enable input
