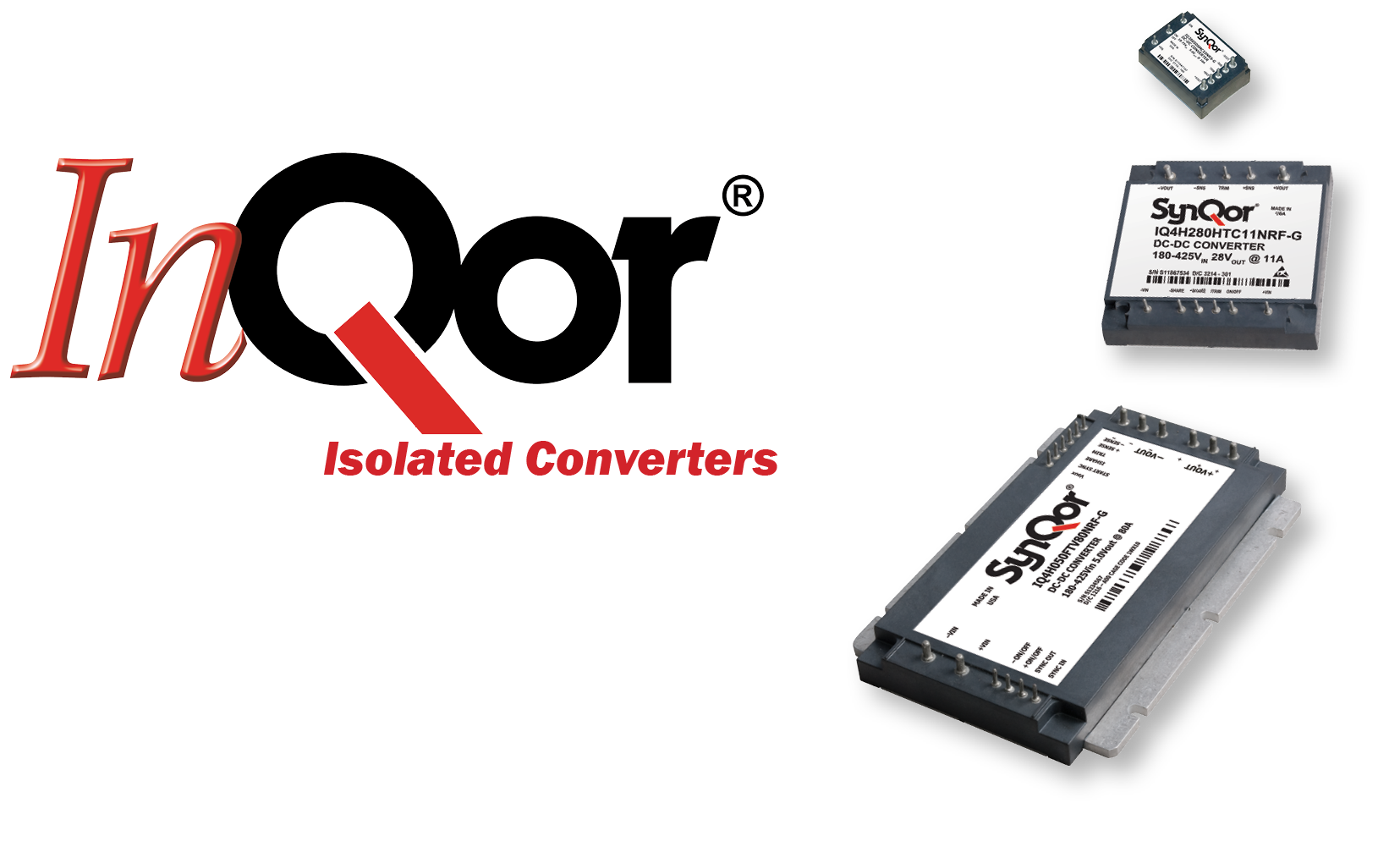

InQor® - Isolated DC-DC converters

Industrial Power Converters

Next-Generation, Ruggedized Isolated DC-DC Converters for Industrial Applications

SynQor’s ruggedized isolated InQor® DC-DC converters and filters are designed for a wide range of industrial applications including those required to withstand harsh environments: railway and transportation systems, industrial motion control, information displays, factory automation and power generation systems. SynQor converters feature a two-stage power topology with synchronous-rectification that greatly improves efficiency and optimizes the power dissipated by the converter.

  • Operational Features
    • High efficiency up to 95%
    • Input voltage ranges from 9 V to 425 V
    • Output power up to 600 W
    • Fixed frequency switching, low output noise
    • No minimum load requirement
    • Full Feature option on some models
    • Industry standard pin-out configurations and standard footprints
    • Operating Temperature -40ºC to +100ºC
    • Output Voltage Set Point ±1.0%
    • Output Voltage Ripple <1% of Vout (typ.) pk-pk
    • Isolation Voltage Up to 4250 Vdc
  • Protection/Control Features
    • Input under-voltage lockout
    • Output current limit and short circuit protection
    • Active back bias limit prevents damage to converter from external load induced pre-bias
    • Digital output current sharing (Half Brick Zeta only)
    • Output over-voltage protection
    • Thermal shutdown
    • Trimmable output voltages
