Medical Grade AC-DC Power Supplies

Medical Grade Highly Efficient AC-DC Power Supplies with PFC

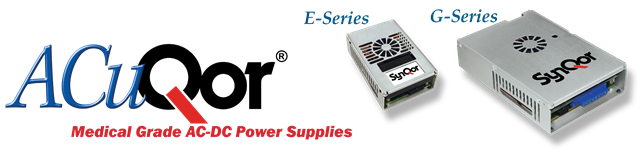

The ACuQor® product line offers best-in-class solutions for AC-DC power supplies designed to meet an extensive range of medical applications. Packing 500 W of usable power into just 3.50" x 5.25" x 1.63", the E-Series is the world’s smallest cardiac care, medical grade AC-DC converter for this power level. The G-Series provides 1400 W of usable power in a 4.75" x 7.00" x 1.63" package. The medical grade version meets 60601-1 medical safety specifications for cardiac contact without requiring an external isolation transformer.

  • Product Features
    • High efficiency up to 93% at full rated load current
    • Delivers up to 1400 W of output power (1800 W transient)
    • Semi-regulated output
    • Universal 85-264 V AC Input Voltage (47-63 Hz)
    • Single output voltages: 12 V, 15 V, 24 V, 28 V, 36 V, 48 V
    • 5 V “Always On” standby power output
    • Over-current, over-voltage and over-temp protection
    • DC Power Good and AC Power Good signals
    • Remote enable input
    • Type B, BF, CF & Defibrillator proof variants available
    • Medical EMI Compatibility: IEC 60601-1-2 ed 4.0 compliant
    • Active PFC; EN61000-3-2 compliant
    • Low leakage; EN60601-1 compliant
    • Low noise; EN55011 / EN55022 Class B compliant
    • Operating ambient temperature: 0ºC - 70ºC
Medical Grade DC-DC Converters

Rated for CF Patient Contact and Defibrillation Proof

Rated for CF Patient Contact and Defibrillation Proof.

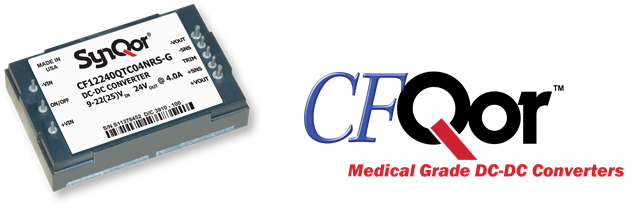

The CFQor series of Quarter-Brick DC-DC converters are high efficiency converters designed for those medical applications that require isolation and leakage current levels complying with IEC60601-1 for CF patient contact. They are also defibrillation proof.

  • Product Features
    • High Efficiency, up to 93% at full rated load current
    • Industry standard quarter-brick pin‑out configuration
    • Reinforced Insulation
    • 4250 V, 100 MΩ input-to-output
    • CF Patient Contact
    • Defibrillation Proof
    • -40°C to +100°C Operating Temperature
    • Industry standard pin-out configurations and standard footprints
