ACuQor-Medical AC-DC Power Supplies

Medical Grade AC-DC Power Supplies

Medical Grade Highly Efficient AC-DC Power Supplies with PFC

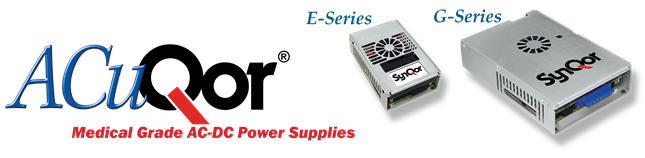

The ACuQor® product line offers best-in-class solutions for AC-DC power supplies designed to meet an extensive range of medical applications. Packing 500 W of usable power into just 3.50" x 5.25" x 1.63", the E-Series is the world’s smallest cardiac care, medical grade AC-DC converter for this power level. The G-Series provides 1400 W of usable power in a 4.75" x 7.00" x 1.63" package. The medical grade version meets 60601-1 medical safety specifications for cardiac contact without requiring an external isolation transformer.

Product Features

  • High efficiency up to 93% at full rated load current
  • Delivers up to 1400 W of output power (1800 W transient)
  • Semi-regulated output
  • Universal 85-264 V AC Input Voltage (47-63 Hz)
  • Single output voltages: 12 V, 15 V, 24 V, 28 V, 36 V, 48 V
  • 5 V “Always On” standby power output
  • Over-current, over-voltage and over-temp protection
  • DC Power Good and AC Power Good signals
  • Remote enable input
  • Type B, BF, CF & Defibrillator proof variants available
  • Medical EMI Compatibility: IEC 60601-1-2 ed 4.0 compliant
  • Active PFC; EN61000-3-2 compliant
  • Low leakage; EN60601-1 compliant
  • Low noise; EN55011 / EN55022 Class B compliant
  • Operating ambient temperature: 0ºC - 70ºC
