Military Isolated DC-DC Converter Modules

Mil-COTS DC-DC Converters for Military/Avionics Applications

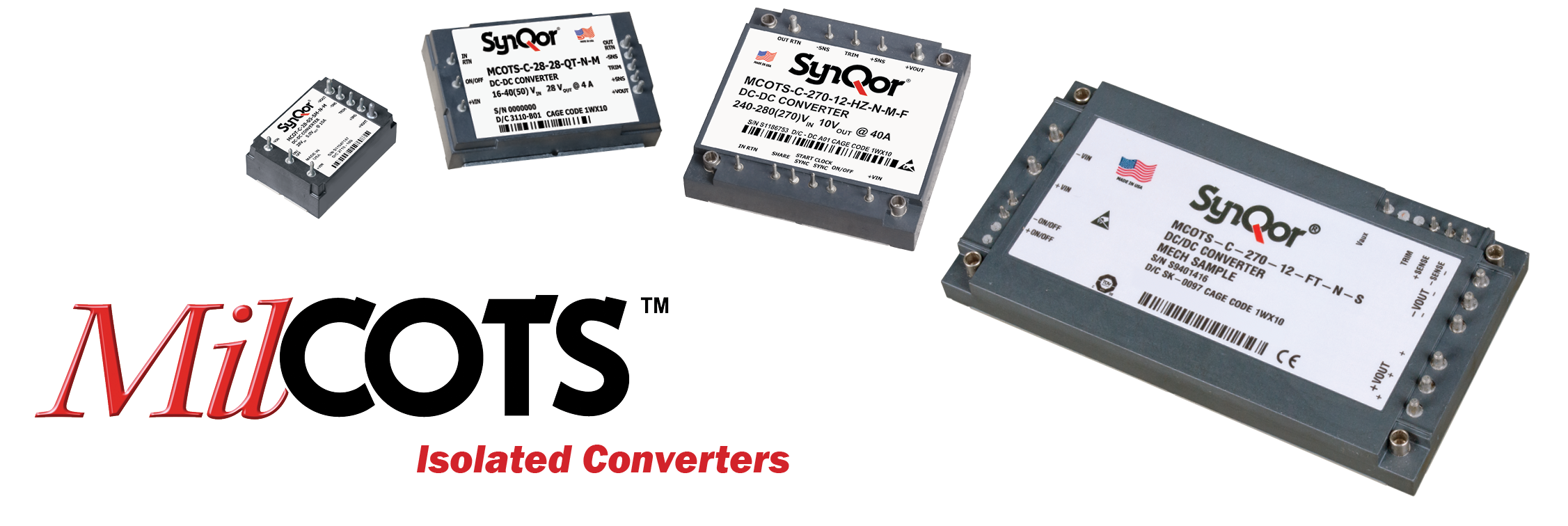

The MilQor^® series of Mil-COTS Isolated DC-DC power converters brings SynQor’s field proven high-efficiency synchronous rectifier technology to the Military/Avionics industry. These “off-the-shelf” converters are compatible with the industry standard format, operate at a fixed frequency, and follow conservative component derating guidelines. SynQor's military DC-DC converters are designed and manufactured to comply with a wide range of military standards.

To learn more visit our Product Guide or contact a SynQor representative.

MCOTS Product Features
- High efficiency power supply, up to 95% at full rated load current
- Fixed frequency switching provides predictable EMI
- No minimum load requirement
- Rugged design for harsh environments
- Full Feature option on some models
- Flanged baseplate available
- Industry standard pin-out configurations and
- standard footprints.
- Available: High-capacitance option for very large
- output capacitance and extreme transient applications
- -55°C to +100°C Operating Temperature
Compliance Features
- Mil-COTS converters with Mil-COTS filters are designed to meet:
  - MIL-HDBK-704
  - RTCA/DO-160 Section 16, 17, 18
  - MIL-STD-1275
  - MIL-STD-461
  - DEF-STAN 61-5 (part 6)/(5, 6)
Protection
- Input under-voltage lockout
- Output current limit and short circuit protection
- Active back bias limit
- Output over-voltage protection
- Thermal shutdown (not on DM Package Size)
Control
- On/Off control referenced to input side
- (Fully isolated Full Bricks)
- Remote sense for the output voltage
- Digital Output Current Sharing (HZ only)
- Output voltage trim range of: +10% to -20%
  - (Half-Brick Zeta) +10% to -50%
  - (Quarter-Brick Exa) +10% to -50%
  - (Sixteenth Brick) +10% to -10%
