Isolated Power Factor Correction Modules

Military Isolated Power Factor Correction Modules

Mil-COTS Isolated Power Factor Correction Module

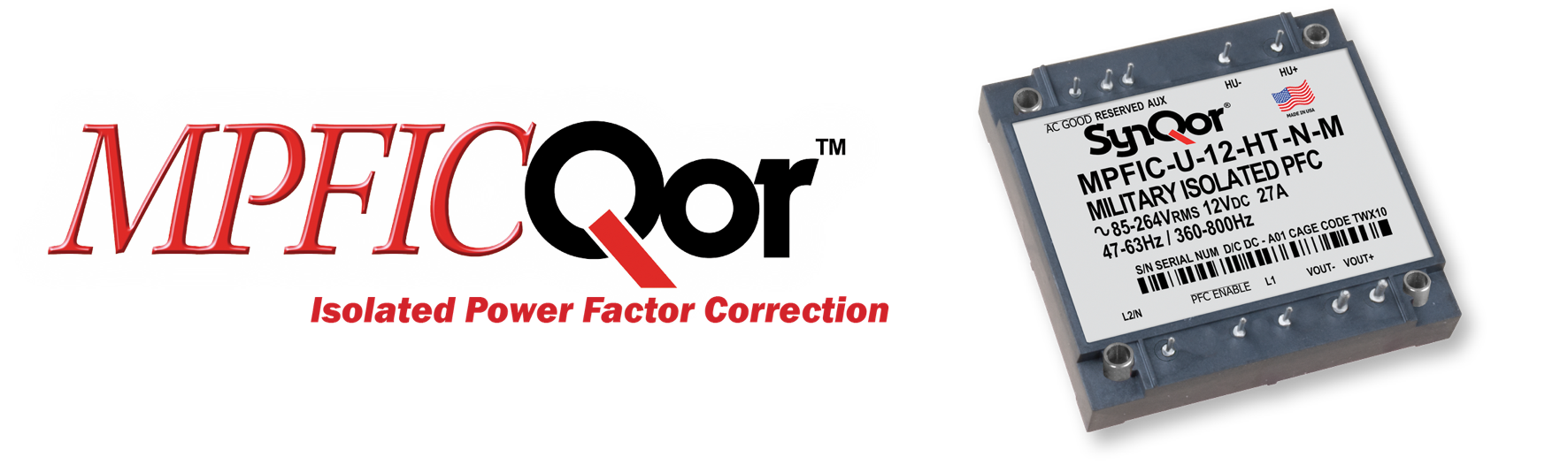

The MPFICQor Power Factor Correction module is a high power, high efficiency AC-DC converter. It operates from a universal AC input and generates an isolated output. Both regulated and semiregulated (droop version) modules are available. Used in conjunction with a hold-up capacitor, and SynQor’s MCOTS AC line filter, the MPFICQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. The module is supplied completely encased to provide protection from the harsh environments seen in many military and aerospace environments.

  • Operational Features
    • Isolated output, 325 W output power
    • Universal input frequency range: 47 - 63 Hz / 360 - 800 Hz
    • Input voltage range: 85-264 Vrms
    • ≥0.99 Power Factor
    • High efficiency: 92% (230 Vrms)
    • -55°C to +100°C Operating Temperature
    • Internal inrush current limit
    • Auxiliary 10V bias supply, primary-side referenced
    • Can be paralleled (droop version only)
    • Compatible with SynQor’s MCOTS AC line filters
  • Protection/Control Features
    • PFC Enable
    • AC and DC Power Good outputs
    • Input current limit and auto-recovery short circuit protection
    • Auto-recovery input under/over-voltage protection
    • Auto-recovery output over-voltage protection
    • Auto-recovery thermal shutdown
