Overview

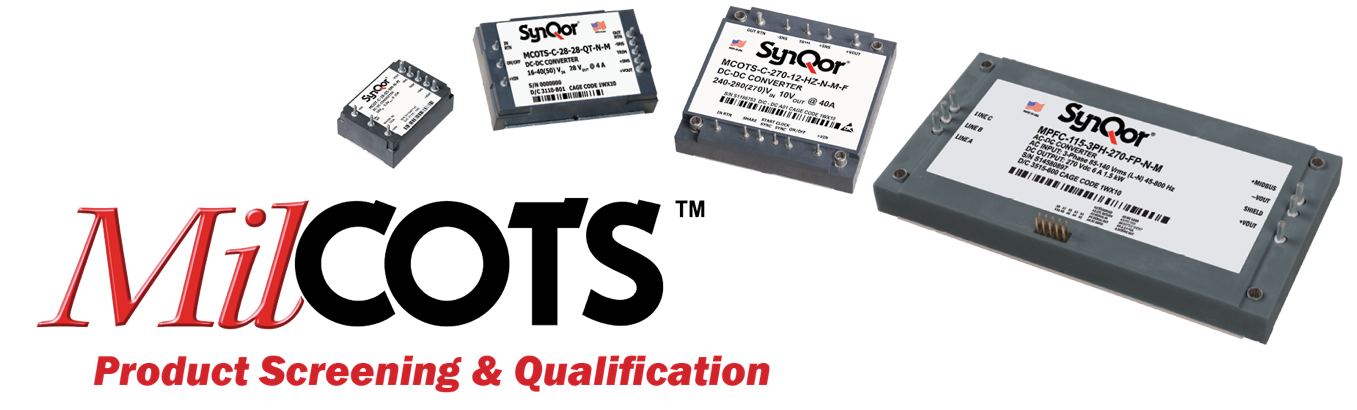

MilCOTS Product Screening and Qualification

Mil-COTS Screening

Environmental Screening Options


The  MCOTS screening process is divided into 7 categories and is designed to ensure the correct and optimal performance of each converter according to their electrical and environmental specifications. The screening process is specifically tailored to each of the S-Grade and M-Grade product family specification requirements.

SCREENING Process Description S-Grade M-Grade
Baseplate Operating Temperature • -55°C to +100°C -55°C to +100°C
Storage Temperature • -65°C to +135°C -65°C to +135°C
Pre-Cap Inspection IPC-A-610 Class III • •
Temperature Cycling MIL-STD-883F, Method 1010,
Condition B, 10 Times		 • •
Burn-In 100°C Baseplate 12 hours 96 hours
Final Electrical Test 100% 25°C -55°C, +25°C, +100°C
Final Visual Inspection MIL-STD-883, Method 2009 • •
