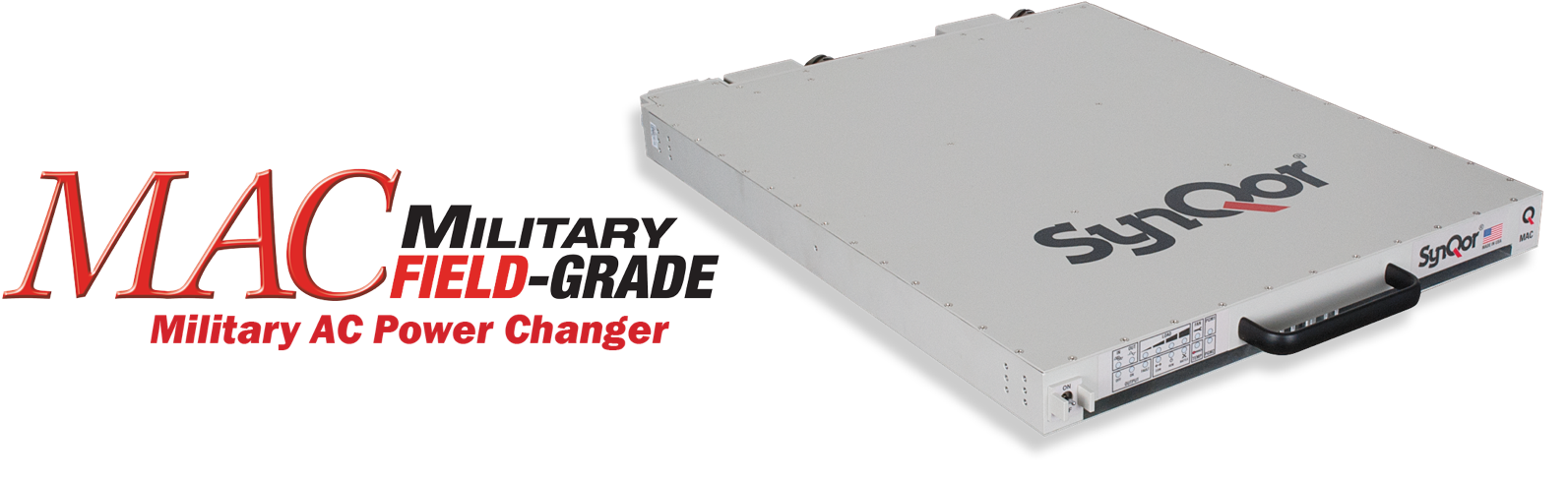

MAC - Military 3-Phase AC Changer

Military 3-Phase AC Changer (MAC)

Sealed, weather-proof, shock-proof construction. Ultra low weight. Compact size.

SynQor's Military AC Phase/Frequency Changer units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor's MAC incorporates field proven high efficiency designs and rugged packaging technologies. This MAC will accept a 3-Phase AC input and change it to a well-conditioned Single-Phase AC output using a two-stage DC link isolated topology. It is designed and manufactured in SynQor's USA facilities to comply with a wide range of military standards. Options include a selection of output voltage amplitudes, frequencies and an electronic breaker on the AC output to permit fault-tolerant parallel operation for higher power and/or N+M redundant systems.

Product Highlights

  • Sealed, weather-proof, shock-proof construction
  • Two-stage, DC link isolated topology
  • 4000 W (5000 VA) output power
  • Full power operation: -40°C to +55°C
  • 3-Phase 360-528 Vrms L-L 3-wire input
  • 47-65 Hz input range
  • Pure sinusoidal AC output voltage
  • Handles 0.0—1.0 power factor loads and non-linear loads
  • Up to 32 units can be combined for higher power, voltage or a 3-Phase AC output
  • Up to 32 units can be combined to form a higher power fault-tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the "AC Output Electronic Breaker" option and the appropriate configuration cable
  • User I/O and Configuration signal ports
  • Battle Mode for over-temperature events
  • 1U high rack mount unit (17.00"W x 22.42"D x 1.73"H)
  • Low weight: 33 lbs.
  • Designed to meet military standards
