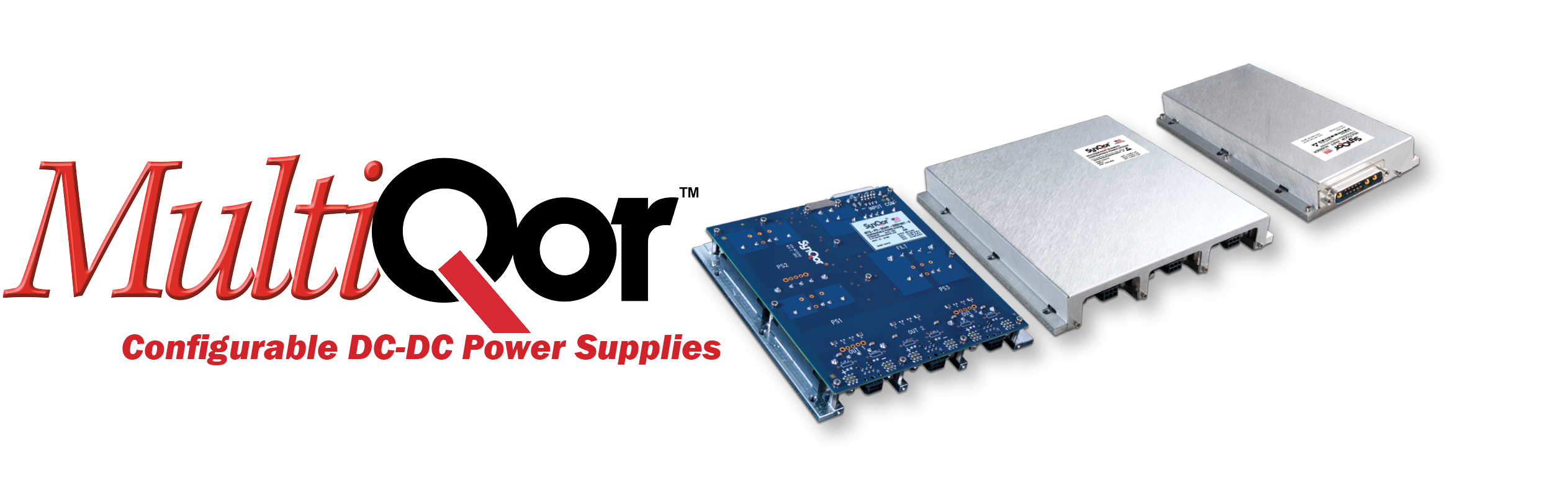

MultiQor Configurable Multi-Output Military DC-DC Power Supplies with EMI filter

Military Configurable Power Supplies (MTQ)

MultiQor Configurable Multi-Output Military DC-DC Power Supplies with EMI filter

The MultiQor Plate format of input-filtered DC-DC power supplies provides up to FOUR customer defined output voltages that are isolated from the input, each other and the cold plate. Using SynQor’s Mil-COTS line of high efficiency, high reliability, fixed switching frequency DC-DC converters and EMI filters, this supply is designed to comply with MIL-STD‑704, MIL-STD‑1275, DEF-STAN 61-5 and MIL-STD-461 for a 28Vin system when continuous full power operation is only needed down to 18Vin. The complete assembly is designed to withstand the harsh conditions of Military and Aerospace applications and is compliant with MIL‑STD‑810 requirements.

Operational Features

  • Internal EMI filter with ceramic stabilizing bulk cap
  • Reverse polarity protection
  • High efficiency converters (90%-95%)
  • Fixed frequency switching provides predictable EMI
  • No minimum load requirement
  • Soft start of all outputs
  • Over-voltage Spike and Surge suppression circuitry to comply with:
    • MIL-STD-704
    • MIL-STD-1275
    • DEF-STAN 61-5 (Part 6)/(5 or 6)

Optional Features

  • Remote Sense Jumpers
  • Internal input fuse
  • Output current sharing
  • Cover

Control Features

  • System Off control (isolated)
  • Individual output voltage Inhibit control (isolated)
  • Remote Sense for each output voltage
  • Output voltage trim for each output
  • Input Good signal (isolated)

Protection Features

  • Input under-voltage lockout
  • Output current limit and short circuit protection
  • Output over-voltage protection
  • Thermal shutdown
  • Automatic restart for all of the above
  • Active back bias current limit
