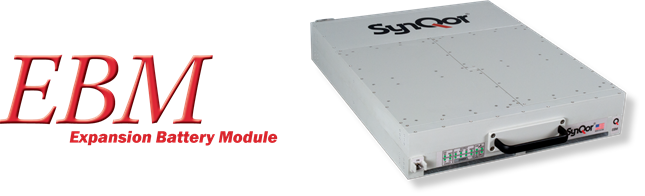

Military Grade Expansion Battery Module (EBM)

Expansion Battery Modules (for UPS)

Military Grade Expansion Battery Module (EBM)

SynQor’s Military-Grade UPS Expansion Battery (EBM) units are designed for the extreme environmental and demanding electrical conditions of Military Land, Shipboard, and Aerospace applications. SynQor’s EBM incorporates field proven high efficiency designs and rugged packaging technologies. This EBM will accept a wide range of input voltage and frequency values while delivering a DC power source to the UPS. The use of lithium polymer batteries permits the lowest profile and lowest weight solution in its power class. It is designed and manufactured in SynQor’s USA facilities to comply with a wide range of military standards.

EBM Product Features

  • Sealed, weather-proof, shock-proof construction
  • > 45 minute run-time at full power 1250 W UPS
  • > 20 minute run-time at full power 2500 W UPS
  • Integral 500 W battery charger
  • Full power operation: -20°C to +55°C
  • Universal AC input: 80-265 VAC; 47-65 Hz
  • Power factor correction at AC input
  • Dual input (AC and DC)
  • Cold start with no AC or DC input connections
  • 3 units can be combined for extended run time
  • User I/O, Ethernet and Configuration signal ports
  • 2U high rack–mount unit (17.00” x 22.28”)
  • Low weight: 61 lbs.

Specification Compliance

  • EBM units are designed to meet:
    • MIL-STD-704 - Aircraft Electrical Power
    • Mil-STD-1399-300 - Interface Shipboard
    • MIL-STD-1275 - Vehicle Electrical Power
    • MIL-STD-461 - Electromagnetic Interference
    • MIL-STD-810 - Environmental Engineering
