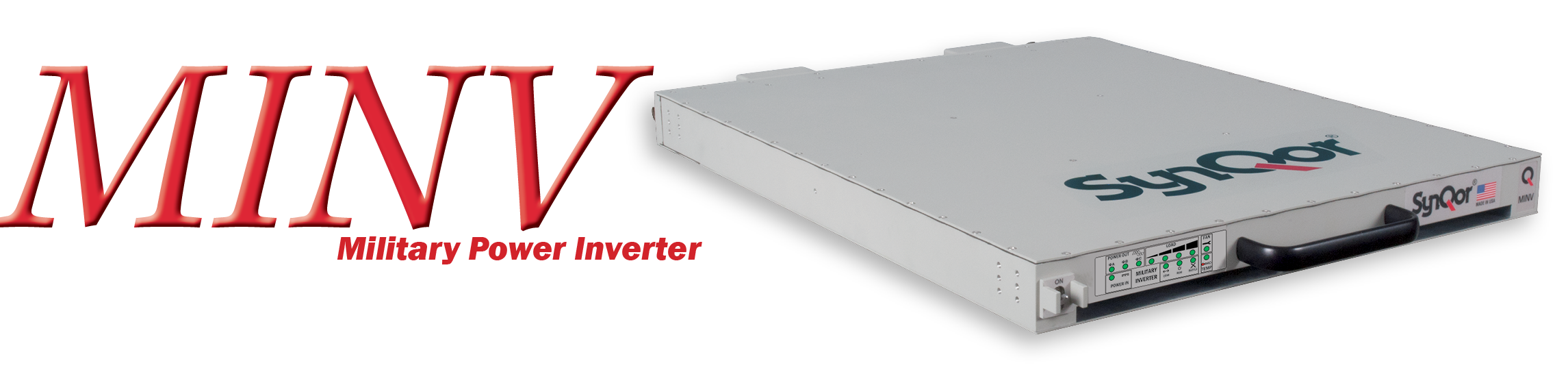

Military Grade Power Inverter (MINV)

SynQor’s Military Inverter units are designed for the extreme environmental and demanding electrical conditions of Military/ Aerospace applications. SynQor’s MINV “Field-Rugged” family of rack-mount products incorporates field proven high efficiency designs and rugged packaging technologies. This MINV will accept a DC input voltage while delivering a well-conditioned AC output to the load. It is designed and manufactured in SynQor’s USA facilities to comply with a wide range of military standards. Options include a selection of output voltage amplitudes, frequencies, and an electronic breaker on the AC output to permit fault-tolerant parallel operation for higher power and/or N+M redundant systems.

• MINV Product Features
  • Sealed, weather-proof, shock-proof construction
  • 4000 W (5000 VA) output power
  • Full power operation: -40°C to +55°C
  • DC Input
  • Pure sinusoidal AC output voltage (115 VAC, 60 Hz)
  • Handles 0.0 - 1.0 power factor loads and non-linear loads
  • Up to 32 units can be combined for higher power, voltage or a 3-phase AC output
  • Up to 32 units can be combined to form a higher power fault-tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the “AC Output Electronic Breaker” option and the appropriate configuration cable
  • Battle Mode for over-temperature events
  • User I/O and Configuration signal ports
  • 1U high rack–mount unit (17.00" x 22.43")
  • Low weight: 30 lbs.
• Specification Compliance
  • MINV-4000 units are designed to meet:
    • MIL-STD-1399-300 - Interface Shipboard
    • MIL-STD-810 - Environmental Engineering
    • MIL-STD-461 - Electromagnetic Interference
    • MIL-STD-704 - Aircraft Electrical Power
    • MIL-STD-1275 - Vehicle Electrical Power
• Options
  • 115 Vrms or 230 Vrms AC output
  • 50 Hz, 60 Hz, or 400 Hz AC output
  • Shipboard version with floating neutral wire
