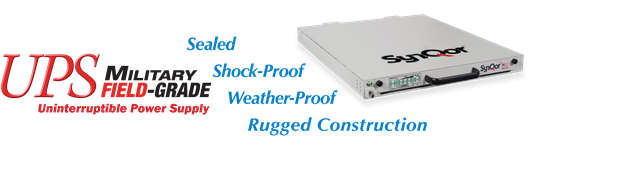

Field proven, Military Field-Grade, Rugged Uninterruptible Power Supply

SynQor’s family of Field-Grade UPS is designed for the extreme environmental and demanding electrical conditions of Military/Avionics applications. SynQor’s Military UPS Systems incorporate field proven high efficiency designs and rugged packaging technologies. This UPS will accept a wide range of input voltage and frequency values while delivering a well-conditioned AC output to the load. Its use of lithium ion batteries permits the lowest profile and lowest weight solution in its power class. It is designed and manufactured to comply with a wide range of military standards. Options include a DC output and the ability to also draw power from a military standard 28 Vdc input.

• UPS Product Features
  • Sealed, weather-proof, rugged UPS
  • Shock-proof construction – outdoor UPS
  • Military Tough, Die-Cast Aluminum Chassis
  • 1250 W (1500 VA); 2500 W (3000 VA) output power
  • >10 minute run-time at full power
  • Full power operation -20°C to +55°C
  • Shallow Rack full power operation -20°C to +50°C
  • Storage temperature: -40°C to +65°C
  • True on-line double conversion
  • Hot swappable internal battery pack (lithium ion)
  • Universal AC input: 80-265 VAC; 47-65 Hz
  • Dual input: AC and optional DC
  • Cold-start with no AC or DC input connections
  • Power factor correction at AC input
  • Pure sinusoidal AC output voltage (115 VAC, 60 Hz)
  • Handles 0.0 - 1.0 power factor loads and non-linear loads
  • User I/O and Configuration signal ports
  • Up to 3 units can be combined for higher power, voltage or a 3-phase AC output
  • Up to 32 units can be combined to form a higher power fault-tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the “AC Output Electronic Breaker” option and the appropriate configuration cable
• Specification Compliance
  • UPS units are designed to meet:
    • MIL-STD-704 - Aircraft Electrical Power
    • Mil-STD-1399-300 - Interface Shipboard
    • MIL-STD-1275 - Vehicle Electrical Power
    • MIL-STD-461 - Electromagnetic Interference
    • MIL-STD-810 - Environmental Engineering
• Options
  • DC input (28Vnom) for dual source
  • 2U Extended battery pack gives >24 minutes of run-time (UPS-1500)
  • Wide-range AC input frequency: 47 Hz to 800 Hz
  • 3-Phase Input
  • 115 Vrms or 230 Vrms AC output
  • 50 Hz, 60 Hz, or 400 Hz output
  • DC1: Auxiliary isolated DC output (up to 500 W)
  • DC2: High power DC output parallelable for higher power (UPS‑1500 up to 1250 W; UPS‑3000 up to 2500 W)
  • Total AC and DC1 and DC2 output power UPS‑1500 = 1250 W
  • Total AC and DC1 and DC2 output power UPS‑3000 = 2500 W
  • Shipboard version with floating neutral wire
  • N+1 Redundancy
  • DC Input with full power DC Output

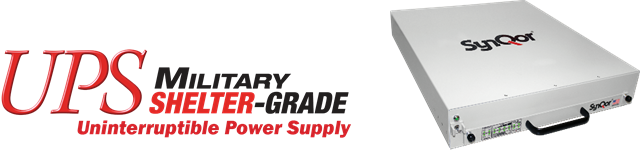

Military Shelter-Grade Uninterruptible Power Supply

SynQor’s family of Shelter-Grade rack-mounted Military Uninterruptible Power Supply units are designed for the environmental and electrical conditions of Military applications. SynQor’s military UPS incorporates proven high efficiency designs and packaging technologies. The use of lithium polymer batteries permits the lowest profile and lowest weight solution in its power class. It is designed to comply with a wide range of military standards.


• UPS Product Features
  • Hot swappable internal battery pack (lithium ion)
  • >10 minute run-time at full power
  • 1250 W (1500 VA) output power
  • Full power operation -10°C to +55°C
  • Universal AC input: 80-265 VAC; 47-65 Hz
  • Power factor correction at AC input
  • True on-line double conversion
  • Cold start with no AC input connections
  • Pure sinusoidal AC output voltage (115 VAC, 60 Hz)
  • Handles 0.0 - 1.0 power factor loads and non-linear loads
  • User I/O and Configuration signal ports
  • 2U high rack mount unit 16.92"W x 22.31"D x 3.40"(2U)H
  • Low weight: 40 lbs. (with chassis and battery)
• Specification Compliance
  • UPS-MS-1500 units are designed to meet:
    • MIL-STD-1399-300B - Interface Std for Shipboard Systems
    • MIL-STD-810G - Environmental Engineering Considerations
    • MIL-STD-461F - Electromagnetic Interference
• Options
  • 115 Vrms or 230 Vrms AC ouptut
  • 50 Hz of 60 Hz output
