UPS - Military Shelter-Grade

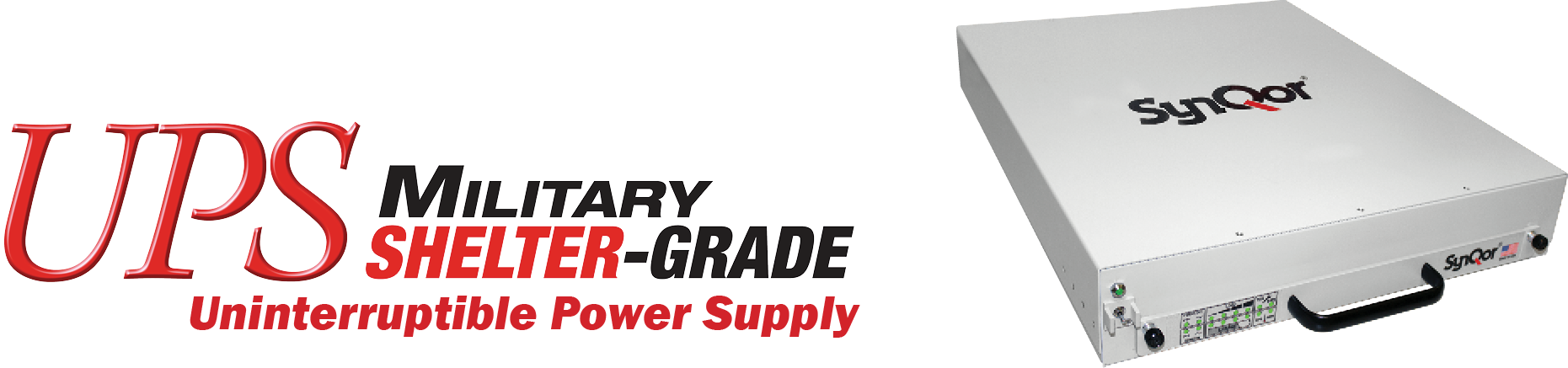

Military Shelter-Grade Uninterruptible Power Supply

SynQor’s family of Shelter-Grade rack-mounted Military Uninterruptible Power Supply units are designed for the environmental and electrical conditions of Military applications. SynQor’s military UPS incorporates proven high efficiency designs and packaging technologies. The use of lithium polymer batteries permits the lowest profile and lowest weight solution in its power class. It is designed to comply with a wide range of military standards.

UPS Product Features

  • Hot swappable internal battery pack (lithium polymer)
  • >10 minute run-time at full power
  • 1250 W (1500 VA) output power
  • Full power operation -10°C to +55°C
  • Universal AC input: 80-265 VAC; 47-65 Hz
  • Power factor correction at AC input
  • True on-line double conversion
  • Cold start with no AC input connections
  • Pure sinusoidal AC output voltage (115 VAC, 60 Hz)
  • Handles 0.0 - 1.0 power factor loads and non-linear loads
  • User I/O and Configuration signal ports
  • 2U high rack mount unit 16.92"W x 22.31"D x 3.40"(2U)H
  • Low weight: 40 lbs. (with chassis and battery)

Specification Complaince

  • UPS-MS-1500 units are designed to meet:
    • MIL-STD-1399-300B - Interface Std for Shipboard Systems
    • MIL-STD-810G - Environmental Engineering Considerations
    • MIL-STD-461F - Electromagnetic Interference

Options

  • 115 Vrms or 230 Vrms AC ouptut
  • 50 Hz of 60 Hz output
