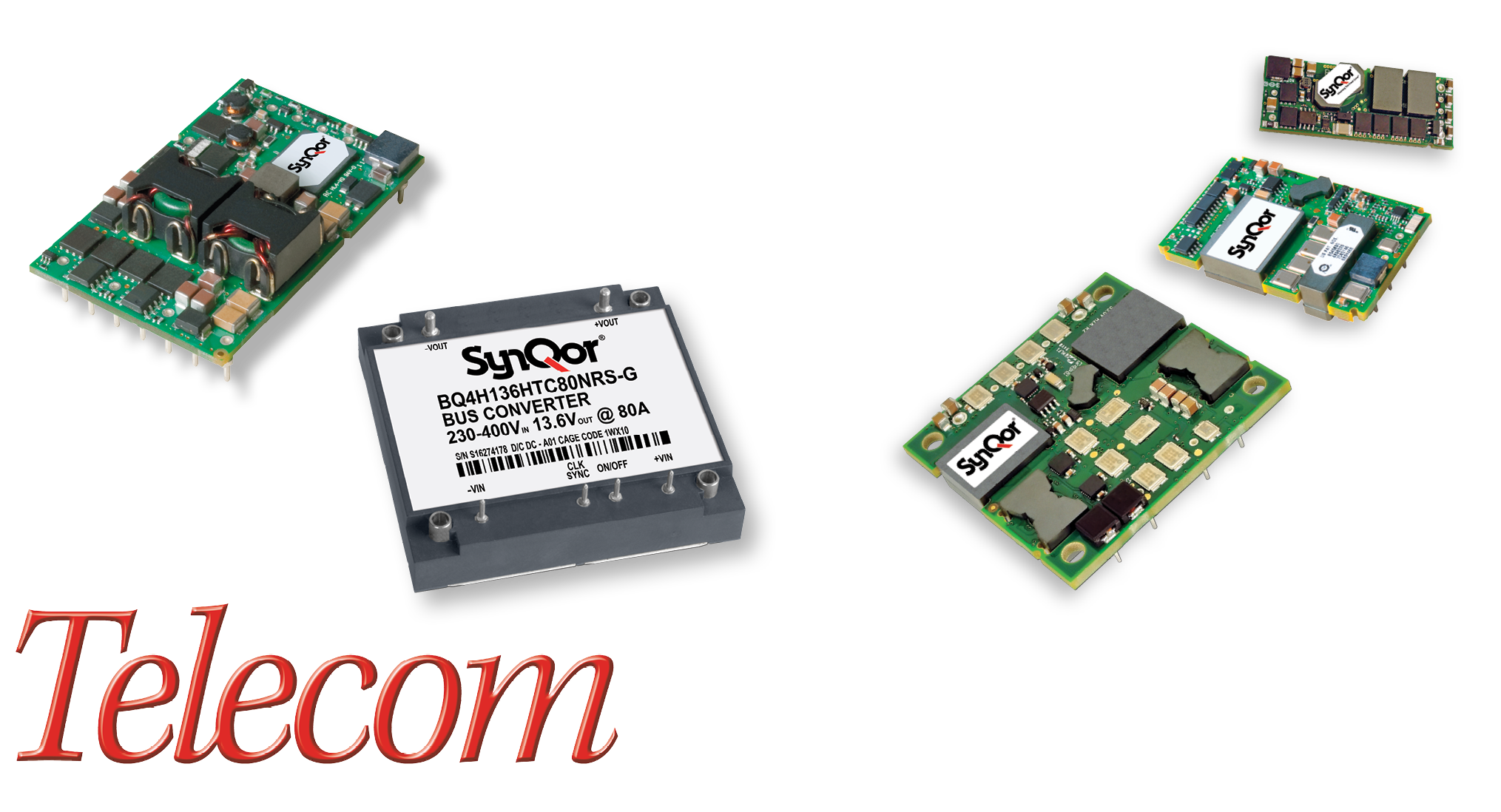

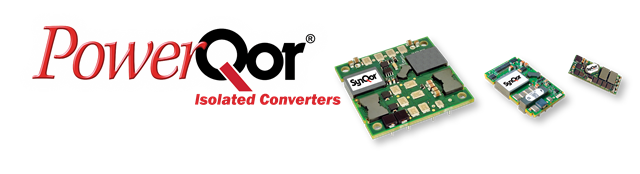

Telecom Isolated Converters

24 V and 48 V Input, Single and Dual Output Isolated DC-DC Converters for Telecom/Network Applications

Single and dual output isolated converters are composed of next-generation, board-mountable, isolated, fixed switching frequency DC-DC converters that use synchronous rectification to achieve extremely high power conversion efficiency. The power dissipated by the converter is so low that a heatsink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate.

  • Operational Features
    • Ultra-high efficiency up to 97%
    • Withstand up to 100 V, 100 ms input voltage transient (PQ60, PQ40 models only)
    • Fixed frequency switching, low output noise
    • No minimum load requirement (except PQ60525HTA04)
    • Full Feature optional on some models
    • Wide input voltage ranges:
      • 18-36 V (PQ24)
      • 18-60 V (PQ30)
      • 18-75 V (PQ40)
      • 35-75 V (PQ48, PQ60, DQ6)
      • 44-52 V (PQ50)
      • 38-55 V (PQ55)
      • 40-75 V (PQ65)
  • General Specifications
    • Operating Temperature -40ºC to +100ºC
    • Output Voltage Set Point ±1.0% to 1.5%
    • Output Voltage Ripple <1% of Vout (typ.) pk-pk
    • Input Ref. Ripple Current <1% of Iin (typ.) rms
    • Switching Frequency 200 - 300 kHz
    • Isolation Voltage Up to 2250 Vdc
    • Industry standard pin-out configurations and standard footprints
    • Output Voltage Trim Range +10% to -20%
      • Sixteenth Brick +10% to -10%
      • Half Brick Zeta +10% to -50%
  • Protection/Control Features
    • Input under-voltage lockout (UVLO)
    • Output current limit (OCP) and short circuit protection
    • Output over-voltage protection (OVP)
    • Thermal shutdown (OTP)
    • Back-drive protection (starts into pre-biased load)
    • On/Off control referenced to input side (Fully isolated for Full Bricks)
    • Remote sense
    • Output voltage trim (industry std. trim equations)
    • Digital Output Current Sharing (HZ only)
  • Baseplate Addenda

    These technical addenda contain additional specifications for baseplated versions of Telecom converters. These units are manufactured by adding industry standard size baseplates to non-baseplated converters using standard mounting techniques. The baseplated versions allow for optional heatsinking in severe thermal environments or for mounting to a cold plate. Please refer to specific product datasheets for all specifications not included in these addenda.

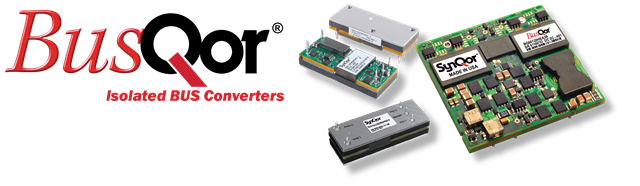

Telecom Isolated Bus Converters

High Efficiency Next Generation DC-DC Bus Converters

The BusQor® bus converters are the next-generation, board-mountable, isolated, fixed switching frequency DC‑DC converters that use synchronous rectification to achieve extremely high conversion efficiency. The power dissipated by the converter is so low that a heatsink is not required, which saves cost, weight, height, and application effort. BusQor converters are ideal for creating the mid-bus voltage required to drive point‑of‑load (non-isolated) converters in Intermediate Bus Architecture.

  • Operational Features
    • Ultra-high efficiency up to 97%
    • Delivers 6.0 V, 9.6 V, 12 V, 13.6 V or 48 V bus for Intermediate Bus Architectures (IBA)
    • Operating Temperature -40ºC to +100ºC
    • Output Voltage Ripple <0.3% of Vout (typ.) pk-pk
    • Input Ref. Ripple Current <5% of Iin (typ.) rms
    • Current Share Accuracy ±10%
    • Isolation Voltage Up to 4250 Vdc
    • Industry standard pin-out configurations and standard footprints
    • Wide input voltage ranges:
      • 42 - 53 V (BQ50)
      • 35 - 55 V (BQ55)
      • 40 - 65 V (BQ57)
      • 35 - 75 V (BQ60, PQ60)
      • 36 - 75 V (SQ60)
      • 330 - 365 V (BQ352)
      • 230 - 400 V (BQ4H)
  • Protection/Control Features
    • Input under-voltage lockout (UVLO)
    • Output current limit (OCP) and short circuit protection
    • Output over-voltage protection (OVP)
    • Thermal shutdown (OTP)
    • Back-drive protection (starts into pre-biased load)
    • On/Off control referenced to input side
    • Remote sense
    • Output voltage trim on select models

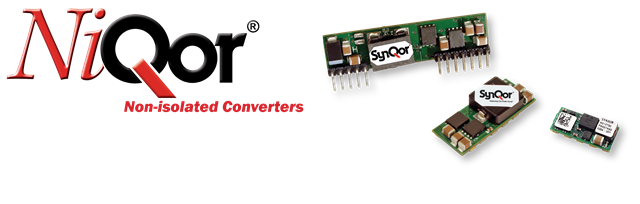

Telecom Non-Isolated DC-DC Converters

Non-Isolated, Ultra-High Efficiency DC-DC Converters for Telecom, Industrial and Medical Applications

The NiQor® DC-DC converter is a non-isolated buck regulator, which employs synchronous rectification to achieve extremely high conversion efficiency. The NiQor family of converters are used predominately in DPA systems using a front end DC-DC high power brick (48 Vin to low voltage bus). The non-isolated NiQor converters are then used at the point of load to create the low voltage outputs required by the design. The wide trim module can be programmed to a variety of output voltages through the use of a single external resistor.

  • General Specifications
    • Operating Temperature -40ºC to +100ºC
    • Output Voltage Set Point ±0.7 - 2.0%
    • Output Voltage Ripple <1.5% of Vout (typ.) pk-pk
    • Input Ref. Ripple Current <5% of Iin (typ.) rms
    • Switching Frequency 300 - 390 kHz
    • Industry standard pin-out configurations and standard footprints
  • Protection/Control Features
    • Input under-voltage lockout (UVLO)
    • Output current limit (OCP) and short circuit protection
    • Output over-voltage protection (OVP)
    • Thermal shutdown (OTP)
    • On/Off control referenced to input side
    • Output voltage trim (industry std. trim equations)
  • Operational Features
    • Ultra-high efficiency up to 96%
    • Output Voltage Trim Range: 0.7 - 5.5 V
    • Suitable for use in Intermediate Bus Architectures
    • On-board input and output filtering
    • No minimum load requirement
    • Optional features include remote sense, wide output voltage trim, and output current sharing
    • Follows DOSA standard pinout and footprint
    • Wide input voltage ranges:
      • 2.4-6.0 Vin (NQ04W33 SMT) 0.75-3.6 Vout @ 10 A/16 A
      • 3.0-6.0 Vin (NQ04W33 SIP) 0.75-3.6 Vout @ 10 A/16 A
      • 3.0-5.5 Vin (NQ04T33 SIP) 0.9-3.3 Vout @ 10 A/16 A
      • 6.0-15 Vin (NQ15W50 SMT) 0.8-5.0 Vout @ 30 A
      • 6.0-16 Vin (NQ16W50 SIP) 0.75-5.0 Vout @ 10 A/16 A
      • 6.0-16 Vin (NQ16W50 SMT) 0.75-5.0 Vout @ 10 A/16 A
    • Wide Trimmable Output Voltage Ranges:
      • 0.75-5.0 V (W50)
      • 0.75-3.6 V (W33)
      • 0.9-3.3 V (T33)

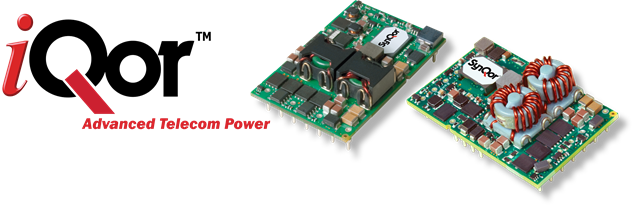

Telecom ATCA Modules

Advanced Telecommunications Computing Architecture (*ATCA®) Power Interface Modules

The iQor Power Interface Modules integrate all features required by the Advanced TCA Base Specification for a frame board power entry into a Quarter-Brick footprint. Minimal external components are required for all the key functions. The product family provides efficient utilization of hold-up capacitance. A full feature module with I2C interface is also available.

  • Operational Features
    • 00 V/1 ms transient protection
    • Auxiliary supply voltages:
      • 3.3 V, 3.6 A
      • 5.0 V, 150 mA
    • Standard Quarter Brick package size: 1.45” x 2.3”
    • Trimmable 50-95 V hold-up capacitance voltage
    • Optional I²C interface for feedback on:
      • A and B Feed Voltage
      • Hold-up Voltage
      • 48 Vout Voltage and Current
      • Temperature
      • Fuse and MOSFET failure
    • Random start-up delay
    • -40°C to +100°C Operating Temperature
    • Industry standard pin-out configurations and standard footprints
  • Protection/Control Features
    • Inrush current limiting
    • EMI filtering
    • Output current limit (OCP) and short circuit protection
    • Output over-voltage protection (OVP)
    • Thermal shutdown (OTP)
    • Hold-up capacitor discharge control
